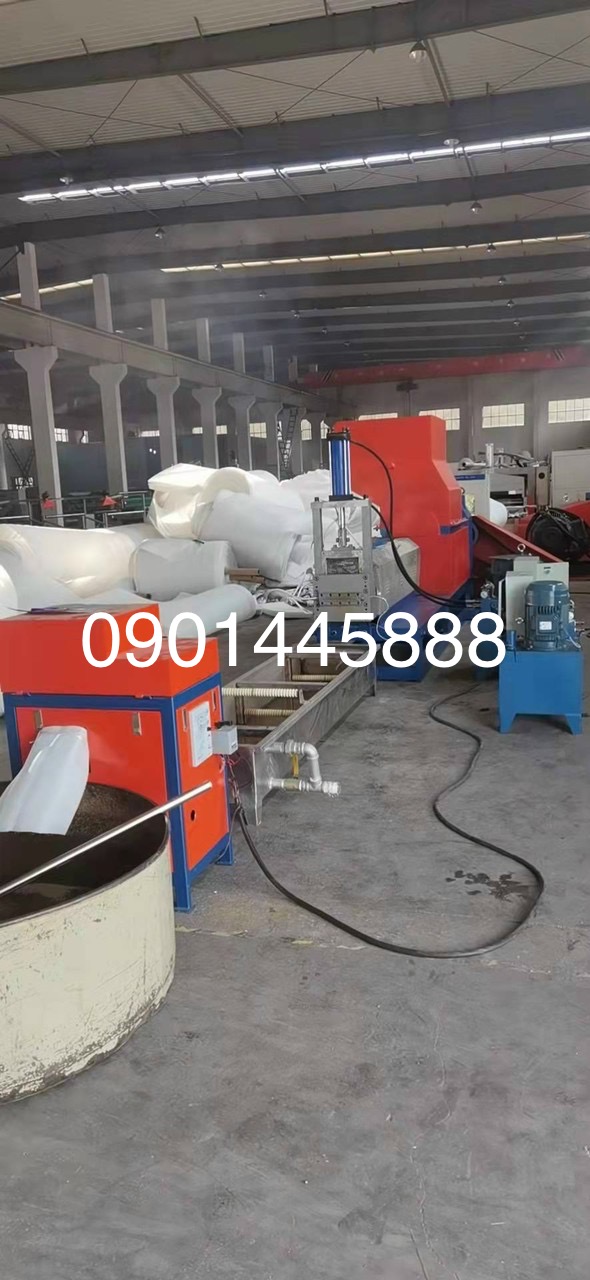

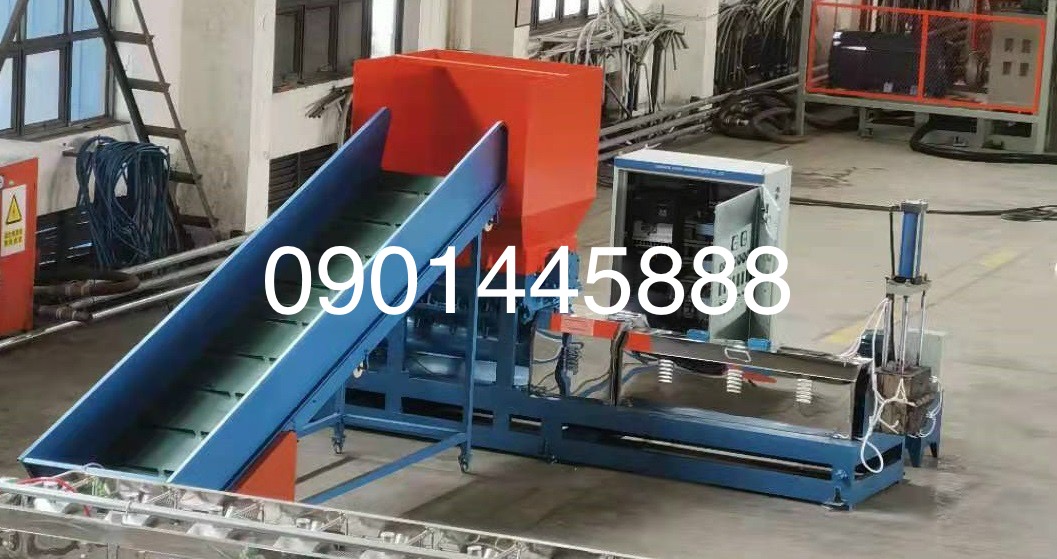

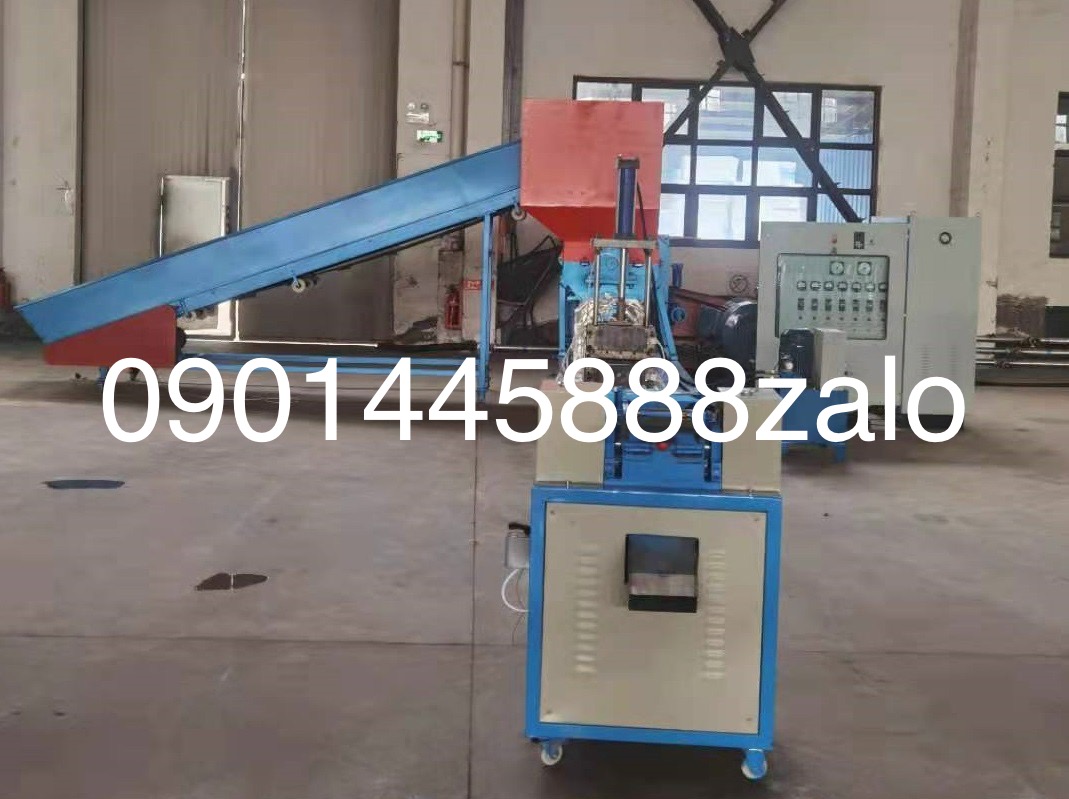

OG-JC200型水冷式废料造粒机
U
1. 发泡塑料造粒机(expandable plastic tablet machine) 型号:OG-JC200改进型
包括以下主要部份:
主机钢架结构
主机破碎单元
主机挤出单元
主机挤出加料单元 主机自动控制单元 切割机控制单元 模头 (平板)单片 水冷却单元
major design data 螺杆直径(the diameter of screw) 200mm
1 set
2. 主要设计数据
including main parts as following: 1套 steel rack structure
1套 Crush unit
1套 squeezing unit 1套 squeezing unit 1套 auto control unit 1套 auto control unit
1套 mold head 1套 cooling machine
1 set
1 set
1 set 1 set 1 set
1 set
1 set
*螺杆长径比(the major axis rate of screw) 18:1(L/D)
*螺杆结构形式:异径锥变距、变深、销钉型。
strcture of screw:the cone in difference diameter ,deepening,and pegging type. *螺杆转速(r. p. m) 20—160(screw rotate speed)
*生产能力(kg/h) 最大250-300/hr
*主电机功率(kw) 45 (the power of main electric machine) *加热器总功率(kw) 12(the total power of heating machine) *切粒刀电机功率(kw) 3(the power of pelletizing knife electric machine) *电气总容量 30(the total capacity of electric)
*水槽( flume) 0.45m×3.6m
*应用材料:(used material) 珍珠棉边角料LDPE材料
EPE leftover material LDPE *挤出机能力(capacity of squeezingengine): 大约(about )250-300kg/hr
*牵引速度(hauling speed): 300-400r/min
*电源规格(specification of power): 3相(three phases) 380/440V×50/60HZ 3. 公用工程要求 demand of public project
*电功率(electric power): 约70KW
4. 切粒机( pelletizing machine) 功率(power) 3KW
5. 安装尺寸(installation size): Approx: 8000*600*1200mm 6. 各部份规格 specification of each part
A.进料口 1套 steel rack structure : 1set 240×600mm B.挤出单元 squeezing 1套 1 set
a)硬齿轮 deceleration box 200-12.5:1
--型式(model) 无级硬齿轮 helical gear without pole --材质(material) 可锻铸铁 orgeable iron
--箱体(box body) FC20
--齿轮(gear wheel) 硬齿(特殊齿形磨光和加热处理)
( special polishing and heating) 电磁调速0-1500转/分(electromagnetism timing 0 to 1500 turns/min) b) 螺筒及螺杆(spiral tube and stick)
-直径(diameter) 200mm 一140mm
2 - 16 - www.vinakingwell.com, www.maymocnhua.com
QUOTE
-材质(material) 38铬目合金钢，经氮化处理(alloy steel , nitrogenized) -加热区(heating area) 4个 (4 set )
-加热方式(heating method) 铸铝加热器及带式加热器
aluminum heater & belt heater C.模具:(mould) 规格(specification) 300×450mm
加热区(heating area) 1区(1 set)
D.水冷却槽(water cooling groove) 规格(specification) 600×2400×400mm
E.切粒部份(pelletizing part) 1.5KW电磁调速(electromagnetism timing)
